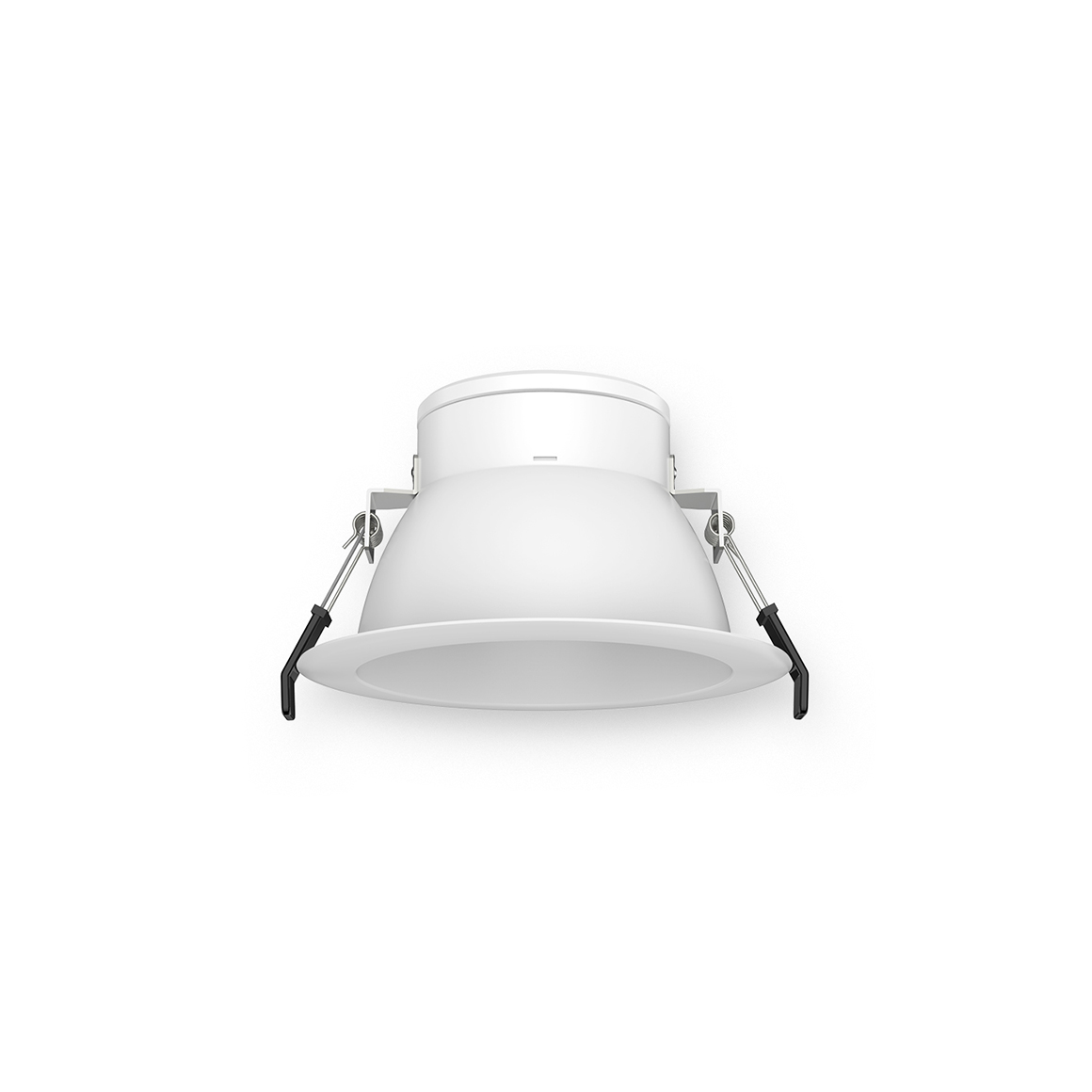

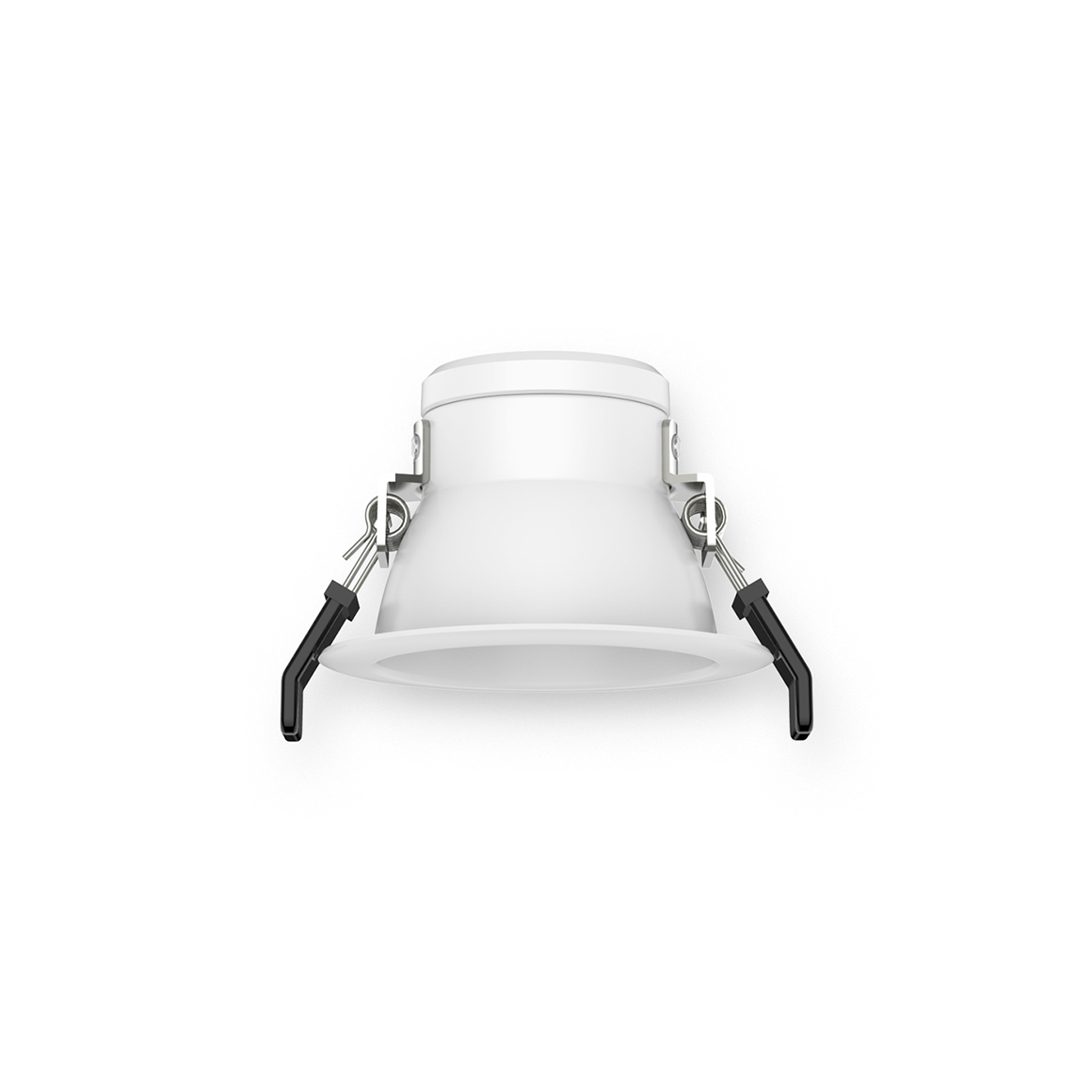

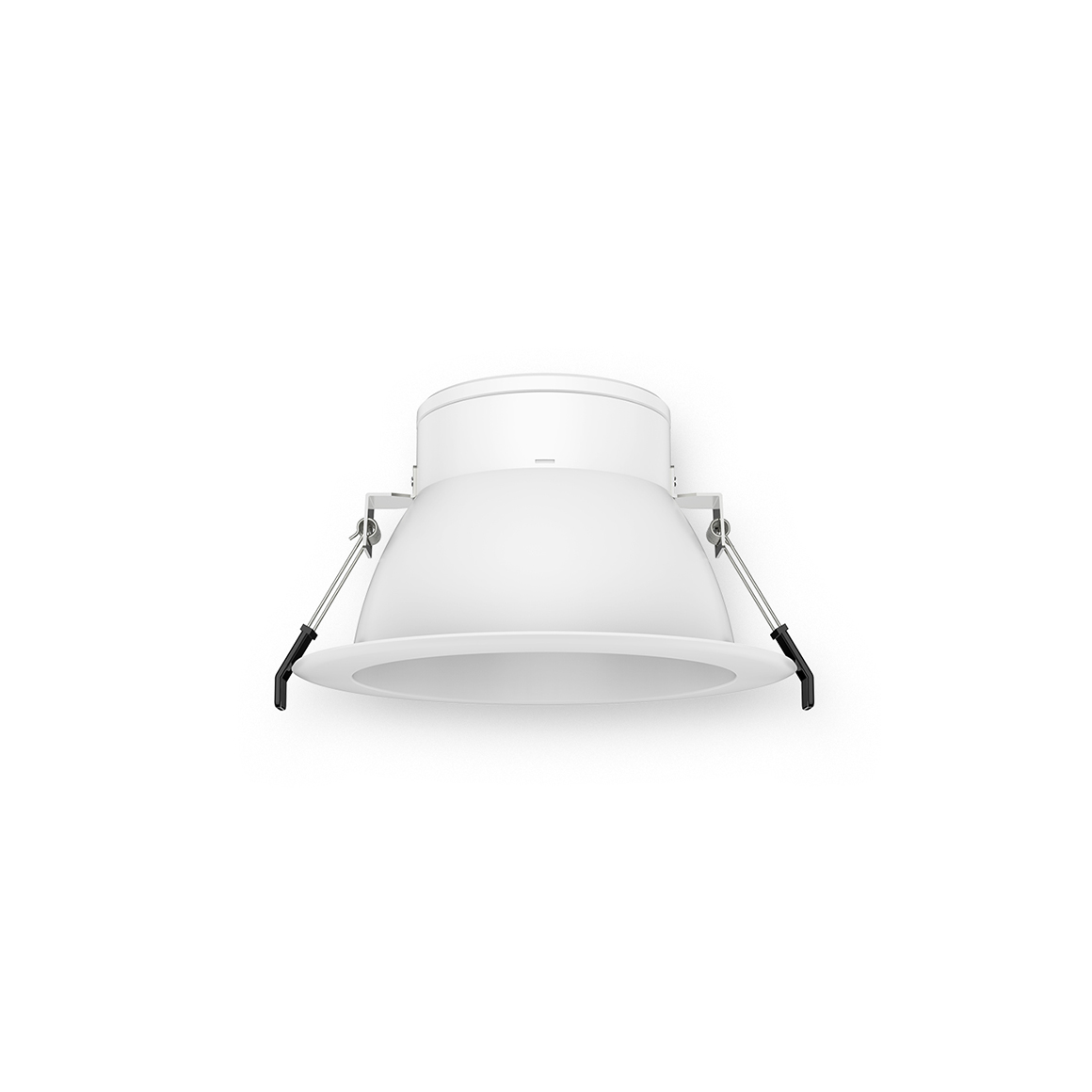

Anti-dazzle Down Light_DS1
A commercial downlight meet price advantage and anti-glare together.
• Also can provide Dip switch(CCT)&Dip switch(DIM) solution
• High Quality and Eye-Friendly Optical Design
• Full range from 2.5’’ to 10’’, provides a complete lighting solution
• COB & SMD use the same housing, beam angle 15/24/36/60° optional
• Isolated Driver, choose different brand drivers according to your needs
• High Quality and Eye-Friendly Optical Design
• Full range from 2.5’’ to 10’’, provides a complete lighting solution
• COB & SMD use the same housing, beam angle 15/24/36/60° optional
• Isolated Driver, choose different brand drivers according to your needs
Specifications
Name/Model
Input Voltage (V)
Wattage (W)
Lumens (lm)
Lifetime (H)
Cut out (mm)
Certificate
DL-DS1C09BRC
100-240
9
800
30000
Φ68
CE
DL-DS1C17ERC
100-240
17
1450
30000
Φ100
CE
DL-DS1C14ERC
100-240
14
1450
30000
Φ100
CE
DL-DS1C28GRC
100-240
28
2600
30000
Φ150
CE
DL-DS1C37HRC
100-240
37
3650
30000
Φ200
CE
DL-DS1C42IRC
100-240
42
4200
30000
Φ250
CE
