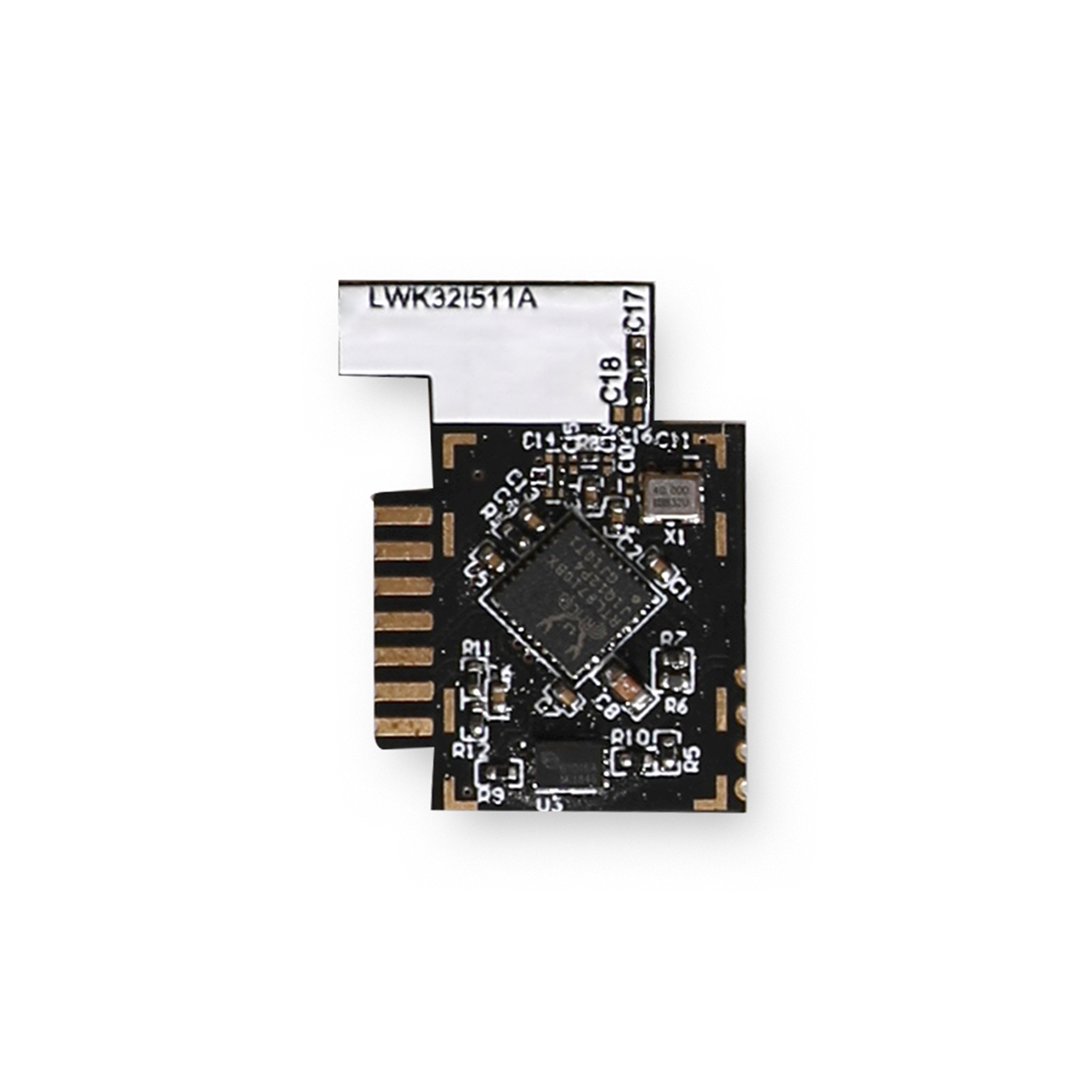

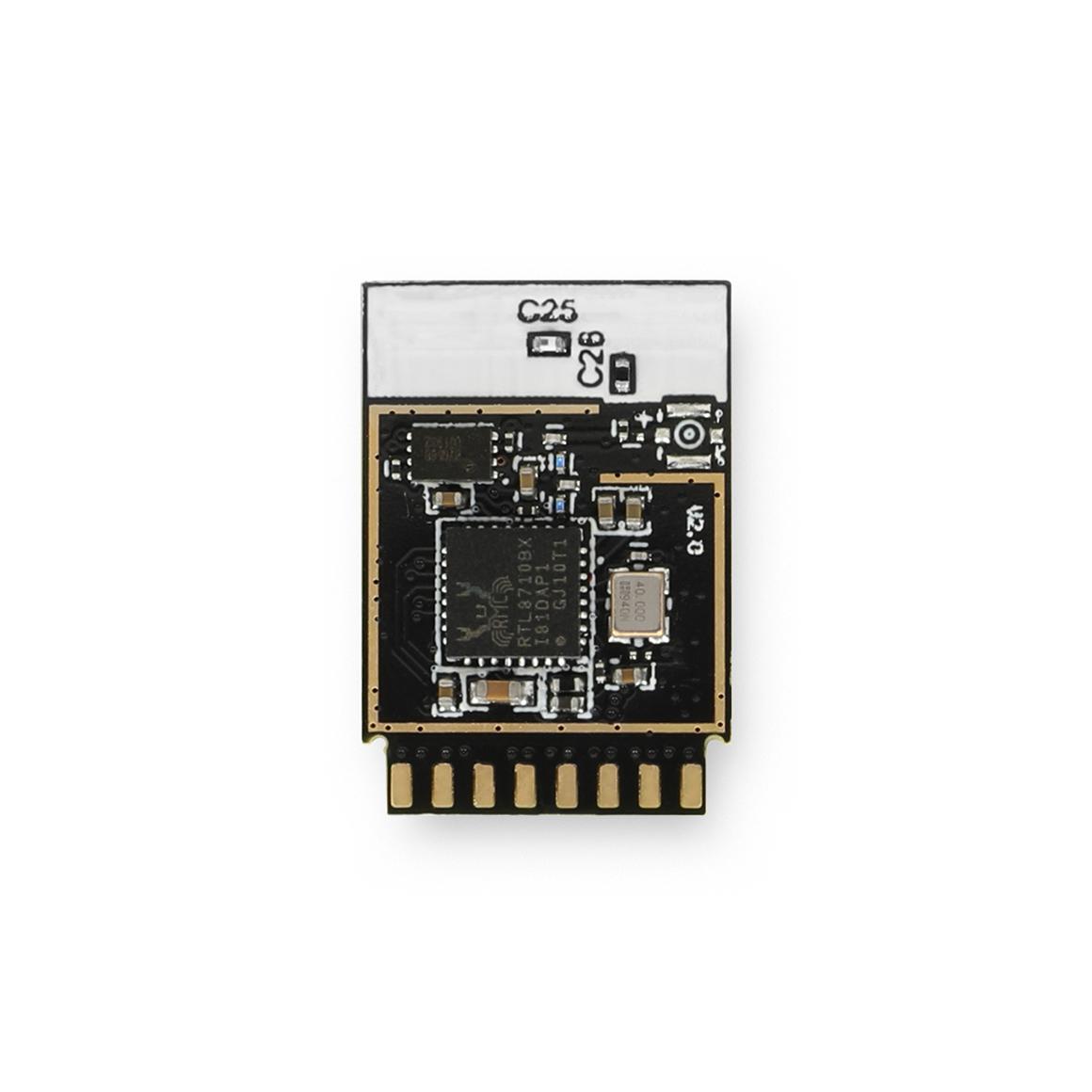

LWK32F510A
1. Support WiFi b/g/n mode.
2. High receiving sensitivity, maximum transmitting power to 16dBm.
3. High operating temperature to 105℃.
4. Integrated PCB antenna, Suitable for the wave-soldering craft.
2. High receiving sensitivity, maximum transmitting power to 16dBm.
3. High operating temperature to 105℃.
4. Integrated PCB antenna, Suitable for the wave-soldering craft.
Specifications
Name
Value
Module
LWK32F510A
IC Solution
Realtek 8710bx
Operating Voltage
3.0-3.6V
Transmitting Power
16dBm
Receiving Sensitivity
-90dBm
Name
Value
Support Interface
GPIO \ PWM \ ADC \ UART \ I2C
Operating Temperature
-40~105℃
Dimension
14mm*20.8mm
Tipical Applied Products
Power Driver, Plug, Gateway, Switch, etc.
