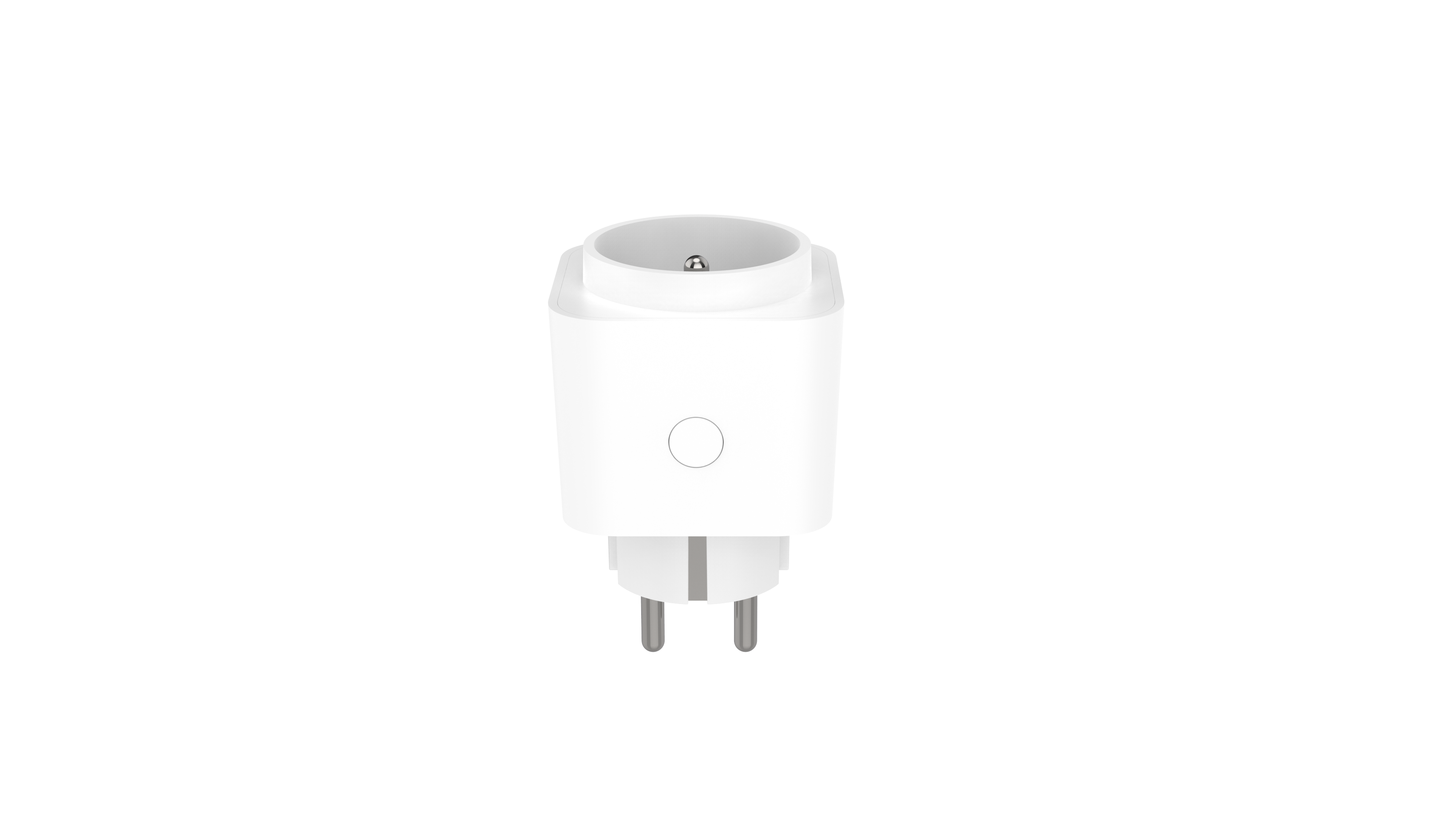

Smart Plug/FR/16A
Control the power of your home device from anywhere by using the mobile Application.
• Control the power of your home device from anywhere by using the mobile Application.
• Automate your home Appliances by setting customized schedules.
• Measures the instantaneous and accumulative energy consumption of the connected devices.(Optional function)
• Zigbee Smart Plug support Zigbee Extender function to further expand the scope.
• Max load 16A can support high-power electrical appliances.
• Automate your home Appliances by setting customized schedules.
• Measures the instantaneous and accumulative energy consumption of the connected devices.(Optional function)
• Zigbee Smart Plug support Zigbee Extender function to further expand the scope.
• Max load 16A can support high-power electrical appliances.
Specifications
Name
Value
Model Number
FR 300
Electrical Ratings
Input: 220V-240VAC, 50Hz,16A
Max Output: 16A Max
Max Output: 16A Max
Power Ratings
Max Output 3680W Max
Button
1Pcs to Pair/Power/Reset
Wireless Protocol
Wi-Fi or Zigbee
Size
60*60*84mm
Name
Value
Certifications
CE-RED, Safty NFC 61-314, RoHS
Work With Platform
Alexa, Google Assistant
Metering Accuracy
Less than ± 5W under 100W load
Less than ±5% over 100W load.
Less than ±5% over 100W load.
Product Functionality
ON/OFF, Schedule, Power Meter(Optional)
Operating Humidity
10% ~ 95% RH, Non-condensing
Operating Temperature
0~35°C
