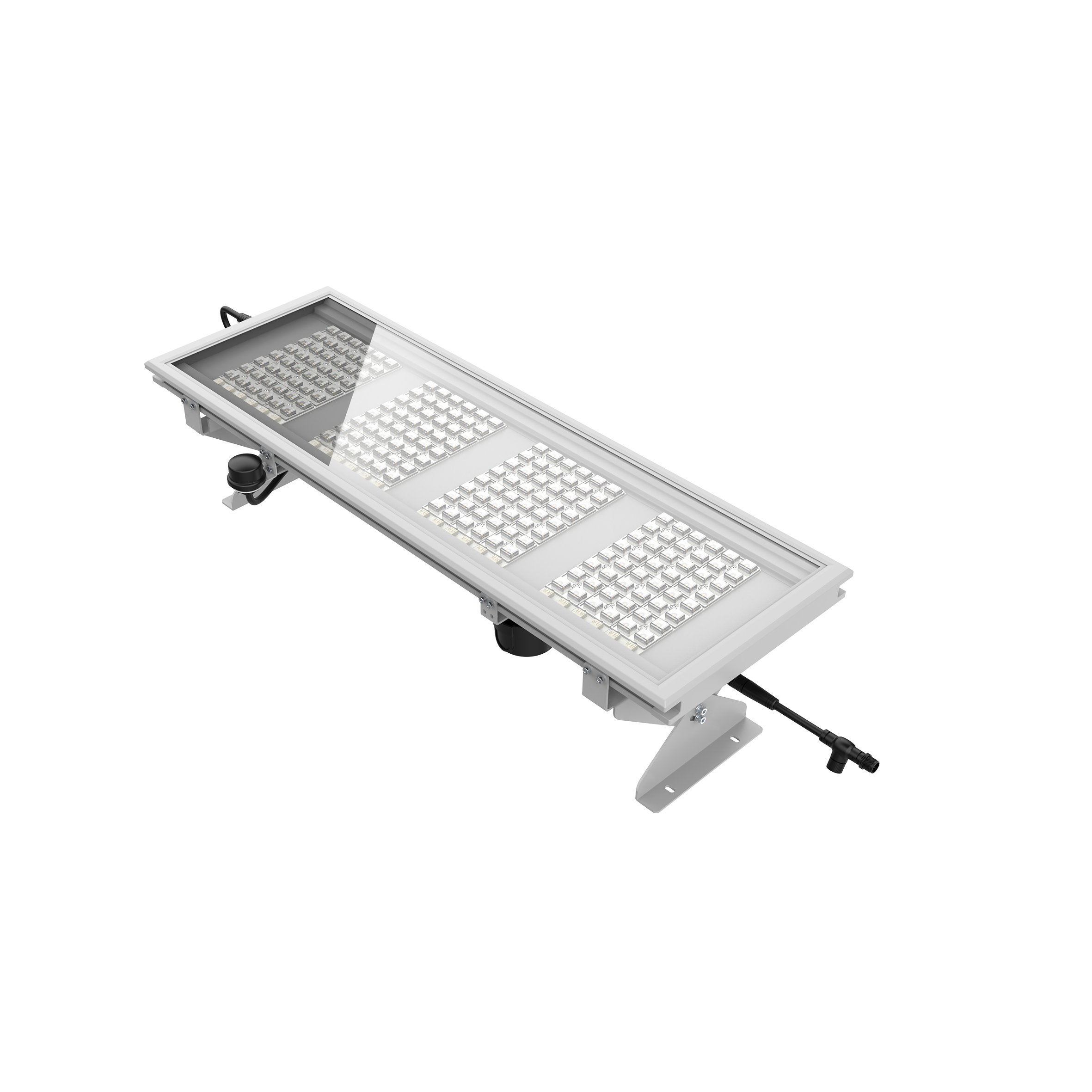

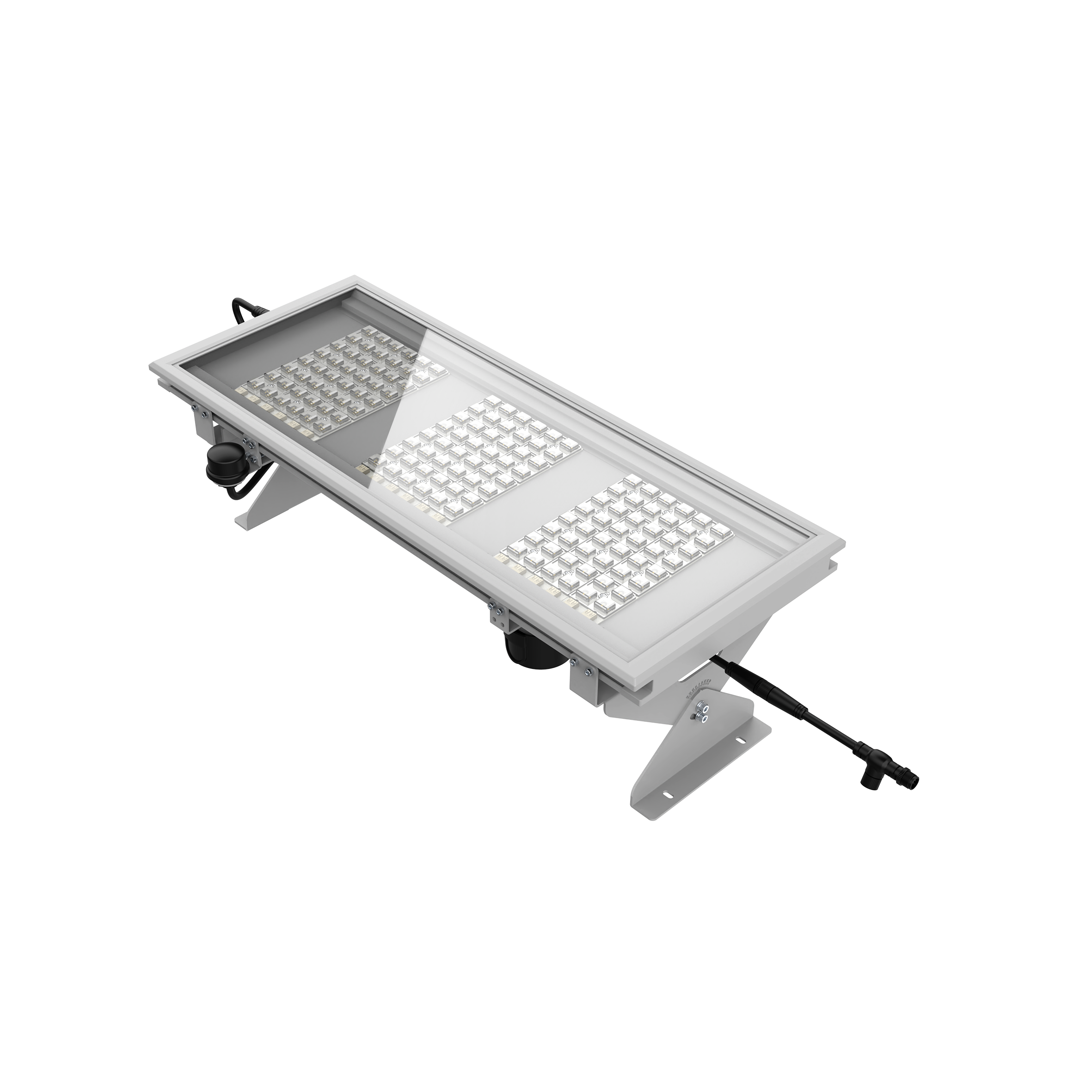

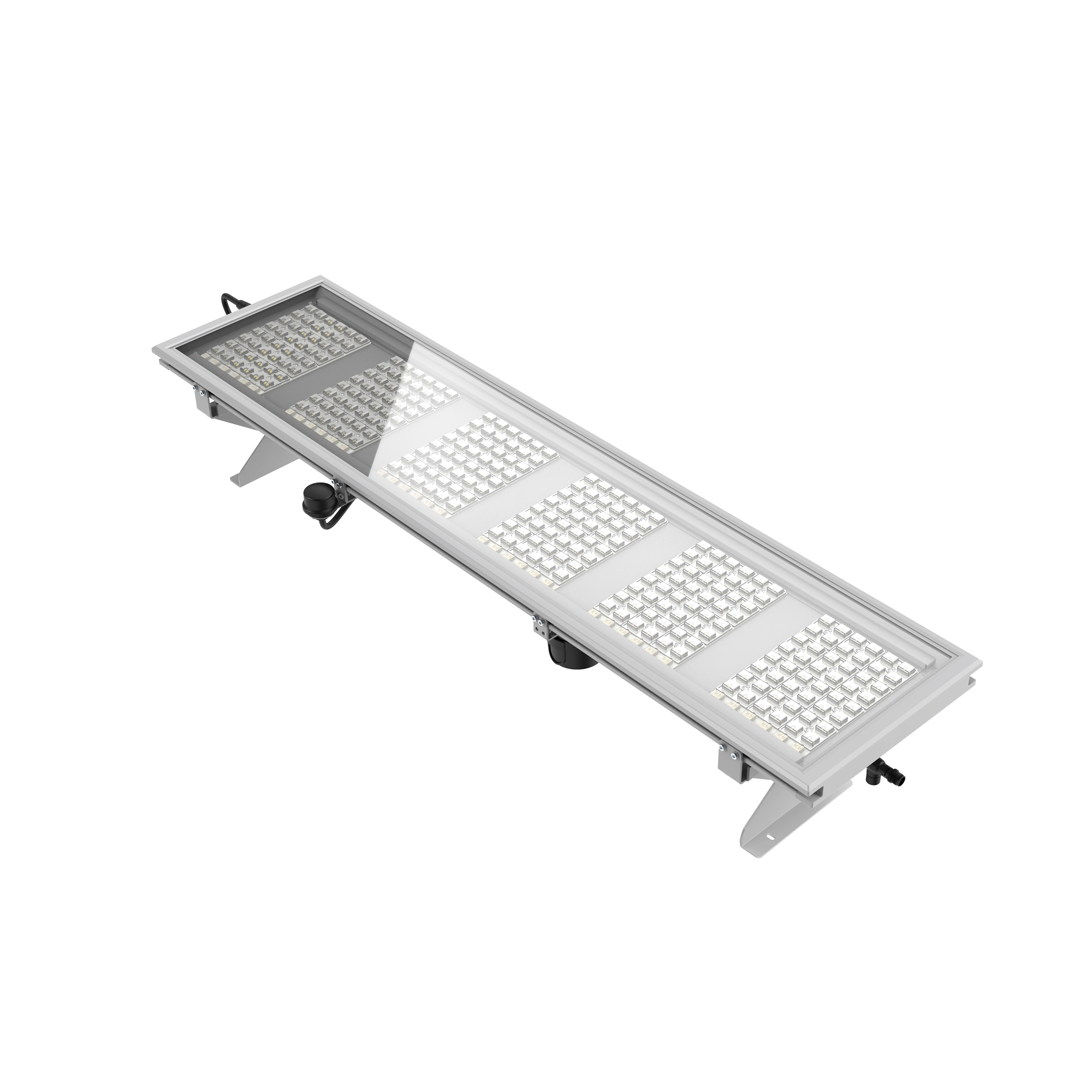

Tunnel Light_TL02
• Big Light Window
• High Efficacy
• Innovative Design
• Smart Connectivity
• Future-Proof Technology: Combines high efficacy, innovative design, and smart connectivity, ensuring the lighting system remains relevant and effective for years
• IK:IK08
• Control: D4i; Dali2; 0-10V；
• IK:IK08
• Control: D4i; Dali2; 0-10V；
Specifications
Name/Model
Input Voltage (V)
Wattage (W)
Lumens (lm)
Dimensions (mm)
CRI
IP Rating
CCT
LEDs
Book15 (2*8)
Tunnel Light MS
45
70
8500
520*325*90
80
IP66
2200
64
4 pcs
Tunnel Light MS
45
100
12600
520*325*90
80
IP66
2200
96
6 pcs
Tunnel Light MS
45
130
16200
520*325*90
80
IP66
2200
96
6 pcs
Tunnel Light MS
45
150
18000
520*325*90
80
IP66
2200
96
6 pcs
Tunnel Light M
45
180
22300
800*325*90
80
IP66
2200
144
9 pcs
Tunnel Light M
45
210
25600
800*325*90
80
IP66
2200
144
9 pcs
Tunnel Light L
45
270
34200
952*325*90
80
IP66
2200
192
12 pcs
Tunnel Light XL
45
340
43600
1320*325*90
80
IP66
2200
288
18 pcs
Tunnel Light XL
45
460
57300
1320*325*90
80
IP66
2200
288
18 pcs
