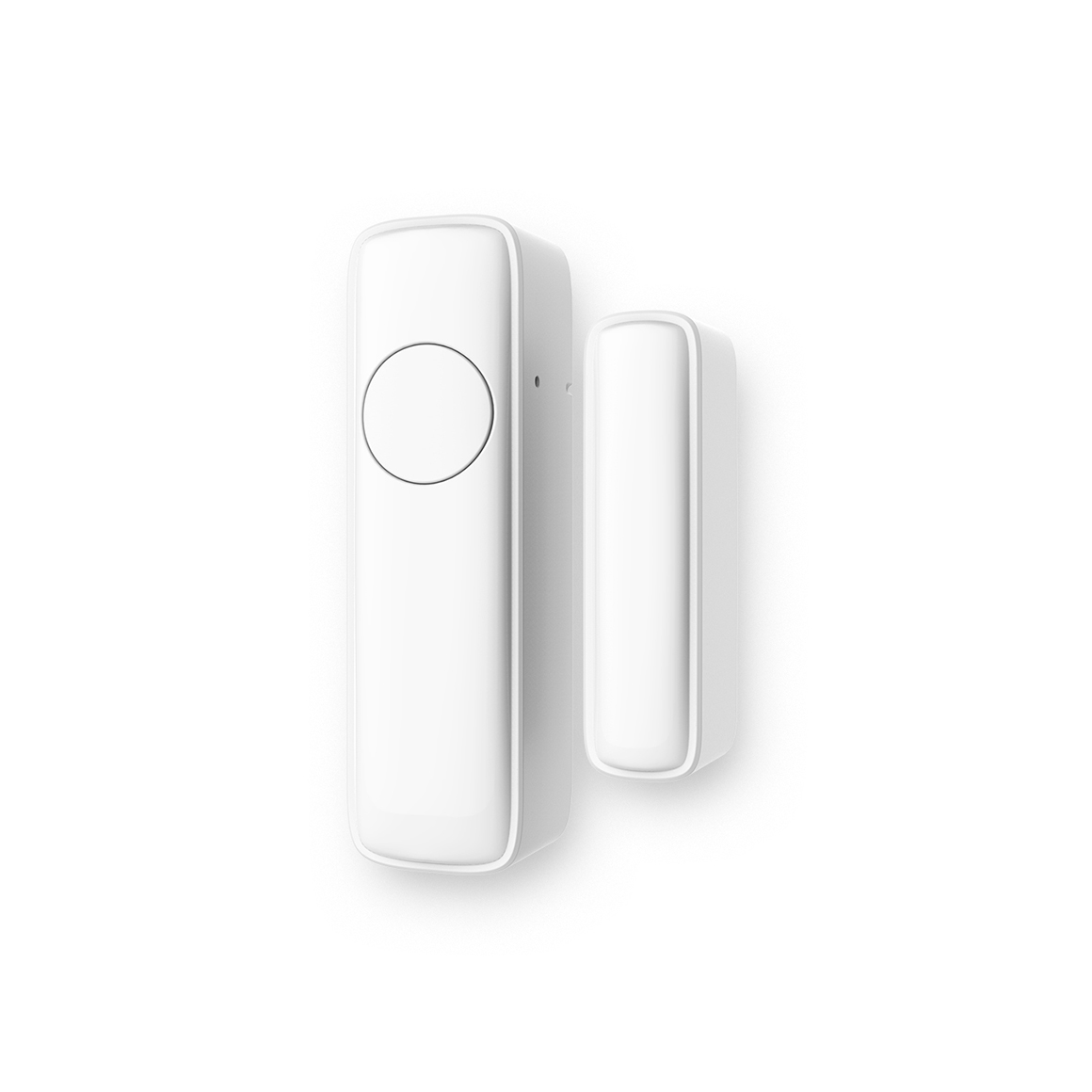

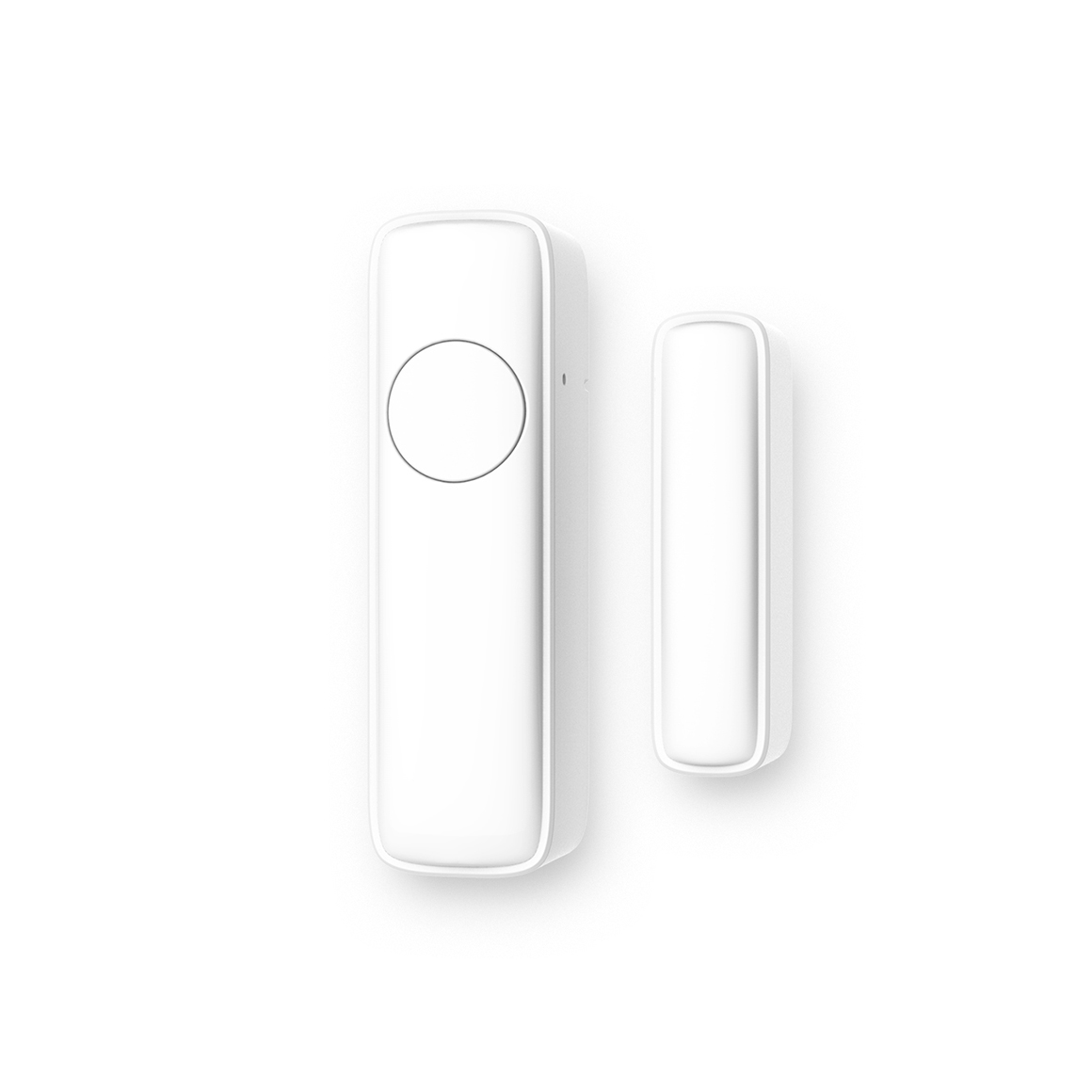

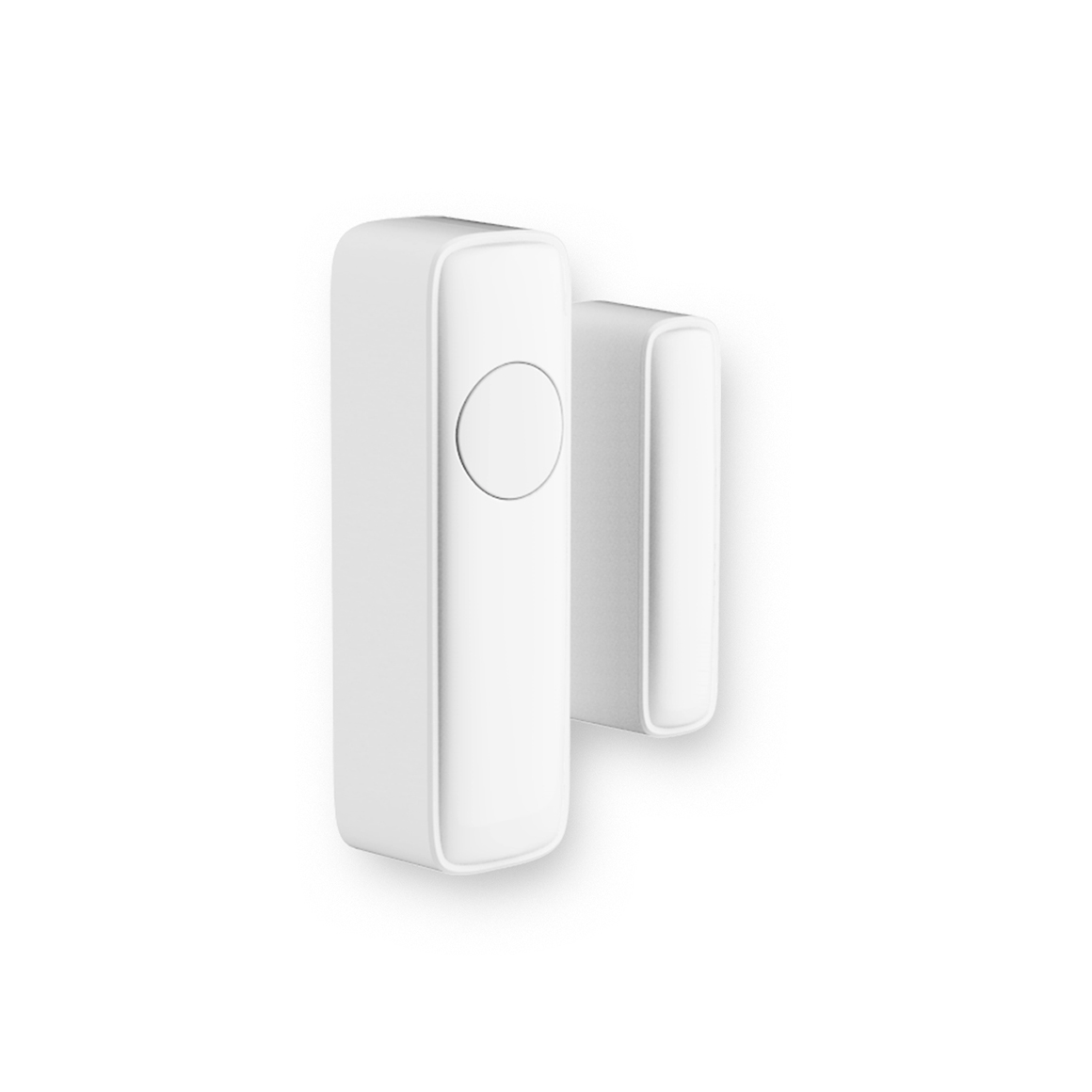

Door Window Sensor(Bypass)
The Leedarson bypass door window sensor is designed for scenes in home automation and security systems, the door window sensor lets you know when door or window is opened. Under the protection state, press the bypass button to suspend the protection, and the host can leave home quickly and quietly.
• With hall effect sensor which is more stable and high reliability than traditional reed switch sensor.
• In arm stay mode, press the button to open a door or window without the arming going off.
• Magnet height adjustment to solve the problem of high and low falling of door/window frame.
• In arm stay mode, press the button to open a door or window without the arming going off.
• Magnet height adjustment to solve the problem of high and low falling of door/window frame.
Specifications
Name
Value
Model Number
7B1-SS-ZE-H0/7AA-SS-VE-C0
Protocol
Zigbee 3.0 / Z-Wave 700
Detection Technology
Hall effect
Magnetic Gap
20 mm
Power Source
3VDC, CR2 x 1
Battery Life
3 Years
Name
Value
Radio Frequency
Zigbee 2.4G Hz/Z-Wave 868.42MHz(EU), 908.42MHz,(US)
Wireless Range
Zigbee: 130ft. (40m) LOS
Z-Wave 700: >328ft(100m) LOS
Z-Wave 700: >328ft(100m) LOS
Operating Temperature
32°F ~ 113°F (0°C~45°C)
Operating Humidity
Up to 85%, Non-condensing
Mounting
Screw or Foam Tape
Certification
FCC/CE
