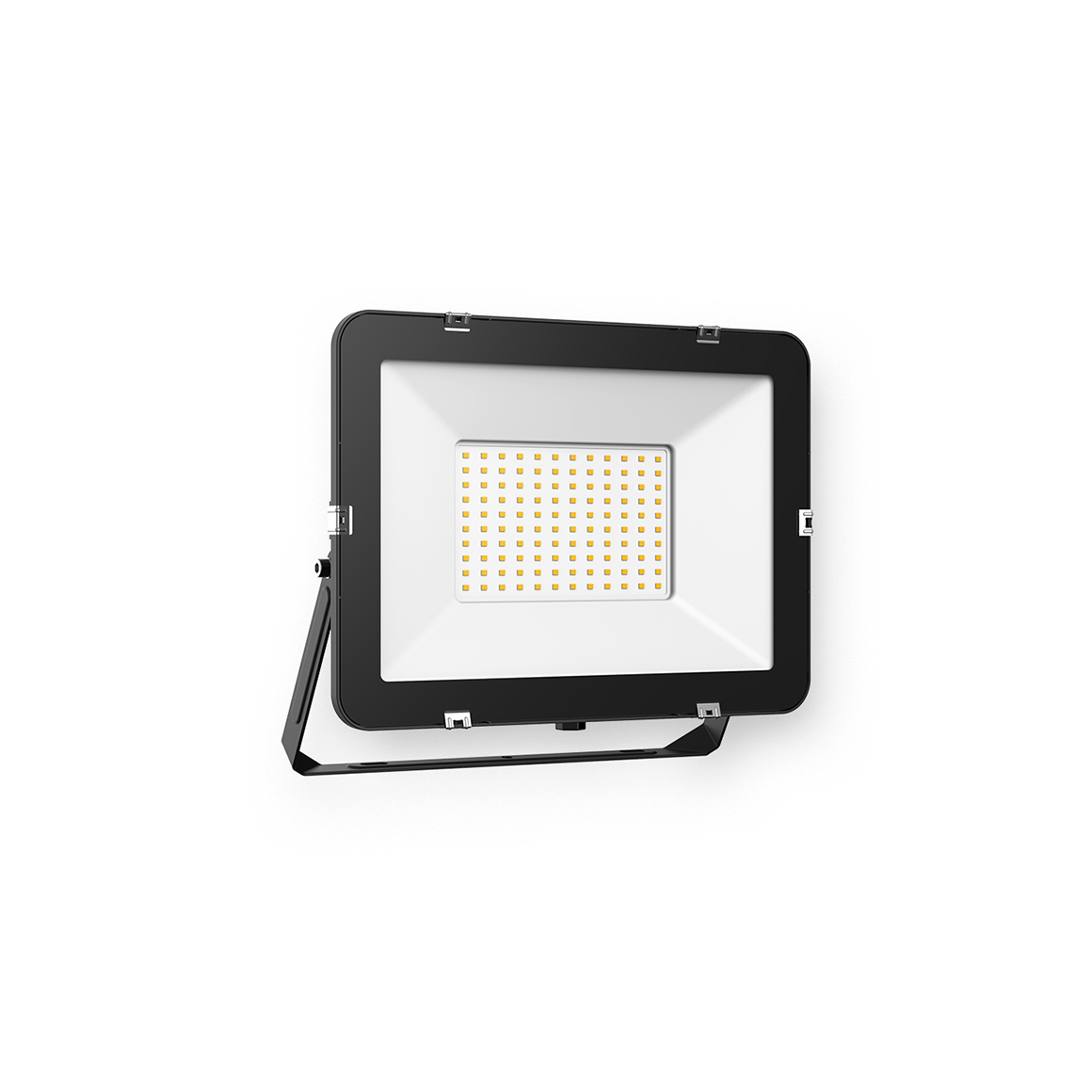

Floodlight_BD01
Slim die-casting LED floodlight, for Electrical Wholesaler/Hardware Stores.
• Fully upgraded Gen2 waterproof technology
• Slim for the flat package, high efficient for storage and delivery
• High-efficiency heat-sink fins design, no afraid of a high-temperature challenge (Ta 50℃)
• Default U bracket, spike/portable bracket/tripod optional
• Slim for the flat package, high efficient for storage and delivery
• High-efficiency heat-sink fins design, no afraid of a high-temperature challenge (Ta 50℃)
• Default U bracket, spike/portable bracket/tripod optional
Specifications
Name/Model
Input Voltage (V)
Wattage (W)
Lumens (lm)
Lifetime (H)
Dimensions (mm)
Certificate
PLF-FL-BD01-D010BN100
100-240
10
1000
30000
104*115*30
IEC60598, RoHS, REACH
PLF-FL-BD01-D020BN100
100-240
20
2000
30000
135*135*30
IEC60598, RoHS, REACH
PLF-FL-BD01-D030BN100
100-240
30
3000
30000
150*140*30
IEC60598, RoHS, REACH
PLF-FL-BD01-D050BN100
100-240
50
5000
30000
190*182*30
IEC60598, RoHS, REACH
PLF-FL-BD01-D070BN100
100-277
70
7000
30000
270*263*42
IEC60598, RoHS, REACH
PLF-FL-BD01-D100BN100
100-277
100
10000
30000
270*263*42
IEC60598, RoHS, REACH
PLF-FL-BD01-D150BN100
100-277
150
15000
30000
335*341*43
IEC60598, RoHS, REACH
PLF-FL-BD01-D200BN100
100-277
200
20000
30000
390*300*49
IEC60598, RoHS, REACH
PLF-FL-BD01-D300BN100
100-277
300
30000
30000
480*380*60
IEC60598, RoHS, REACH
