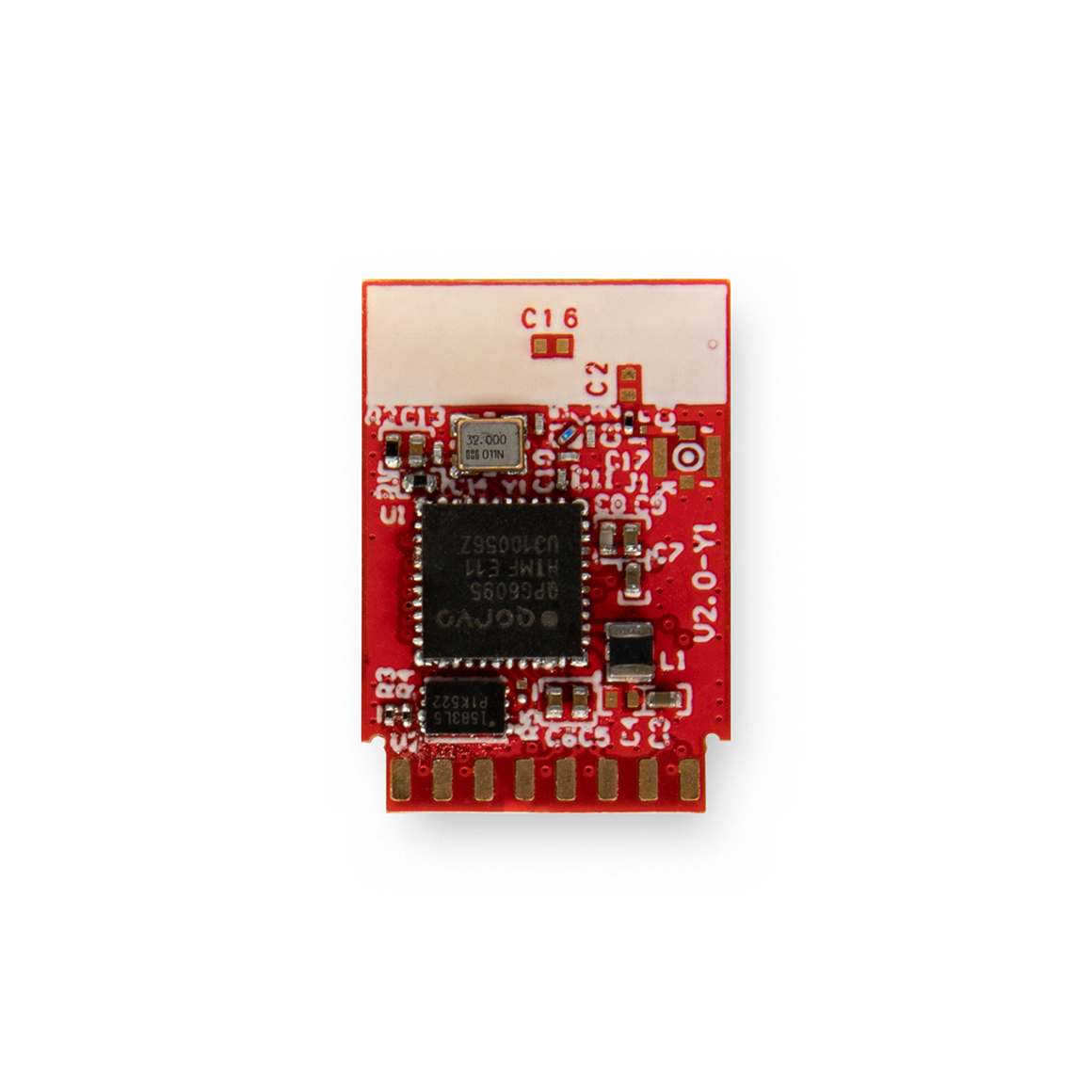

LDV13F010A
1. Support ZigBee 3.0 or BLE 4.2 to acheieve interoperability.
2. Low power consumption, could be applied to coin battery products.
3. High receiving sensitivity, maximum transmitting power to 10dBm.
4. Integrated PCB antenna, suitable for the wave-soldering craft.
2. Low power consumption, could be applied to coin battery products.
3. High receiving sensitivity, maximum transmitting power to 10dBm.
4. Integrated PCB antenna, suitable for the wave-soldering craft.
Specifications
Name
Value
Module
LDV13F010A
IC Solution
Qorvo QPG6095
Operating Voltage
1.8~3.6V
Transmitting Power
10dBm
Receiving Sensitivity
-99dBm(Zigbee) / -96dBm(BLE)
Name
Value
Support Interface
GPIO \ PWM \ ADC \ UART \ I2C
Operating Temperature
-40~125℃
Dimension
14mm*20.8mm
Tipical Applied Products
Power Driver, Sensor, Plug, Gateway, Switch, etc.
