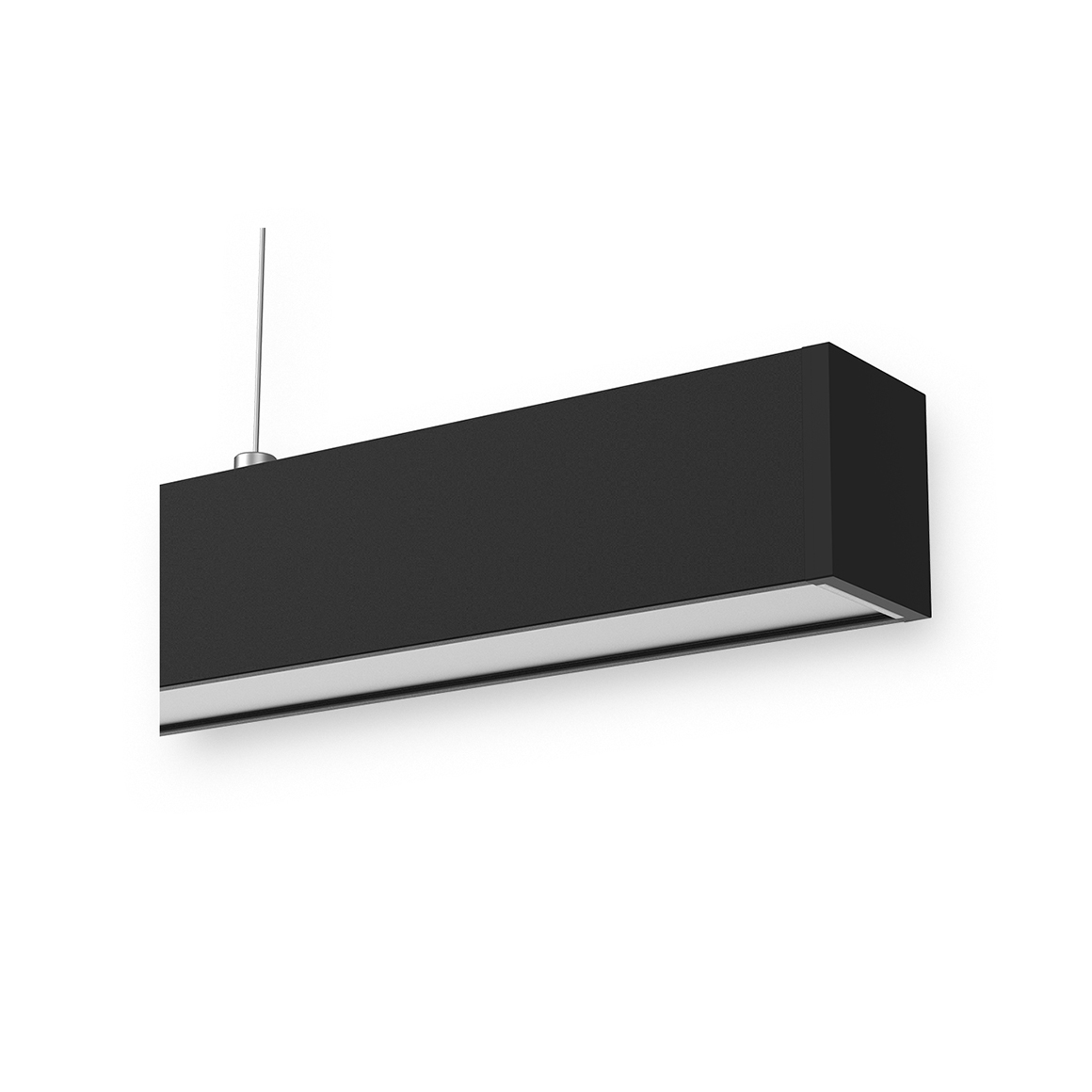

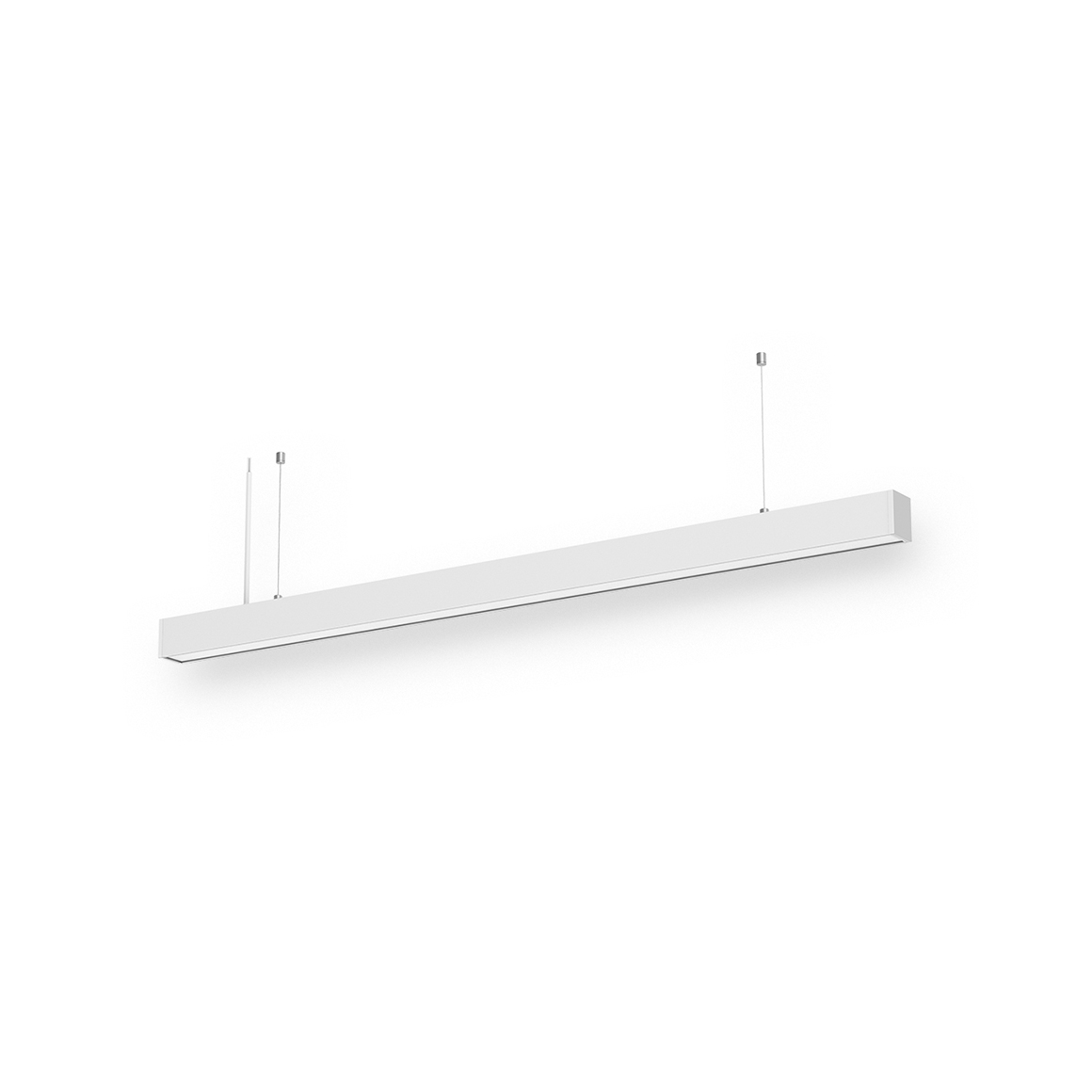

Linear_LM01
Featuring a selection of mounting types, connector modules, output distribution options, functional modules, lumen output, along with dozens of features and options, the LM01 Linear System is the perfect solution to commercial application.
• This linear light is designed to replace traditional fluorescent fixtures, maximum of 10 units to be connected
• Four different Connector modules, to fit different corner shapes
• 2 type Installation ways- Suspended & ceiling mounted
• Four different Connector modules, to fit different corner shapes
• 2 type Installation ways- Suspended & ceiling mounted
Overview
L Shape Connector
T Shape Connector
X Shape Connector
Specifications
Name/Model
Input Voltage (V)
Wattage (W)
Lumens (lm)
Lifetime (H)
Dimensions (mm)
Certificate
1074000073
100-277
38
4000
50000
1200*49*58
CE, RoHS
1074000069
100-277
19
2000
50000
600*49*58
CE, RoHS
1074000065
100-277
15
1575
50000
252*252*58
CE, RoHS
1074000057
100-277
11.5
1200
50000
252*151*58
CE, RoHS
1074000061
100-277
7.5
780
50000
151*151*58
CE, RoHS
