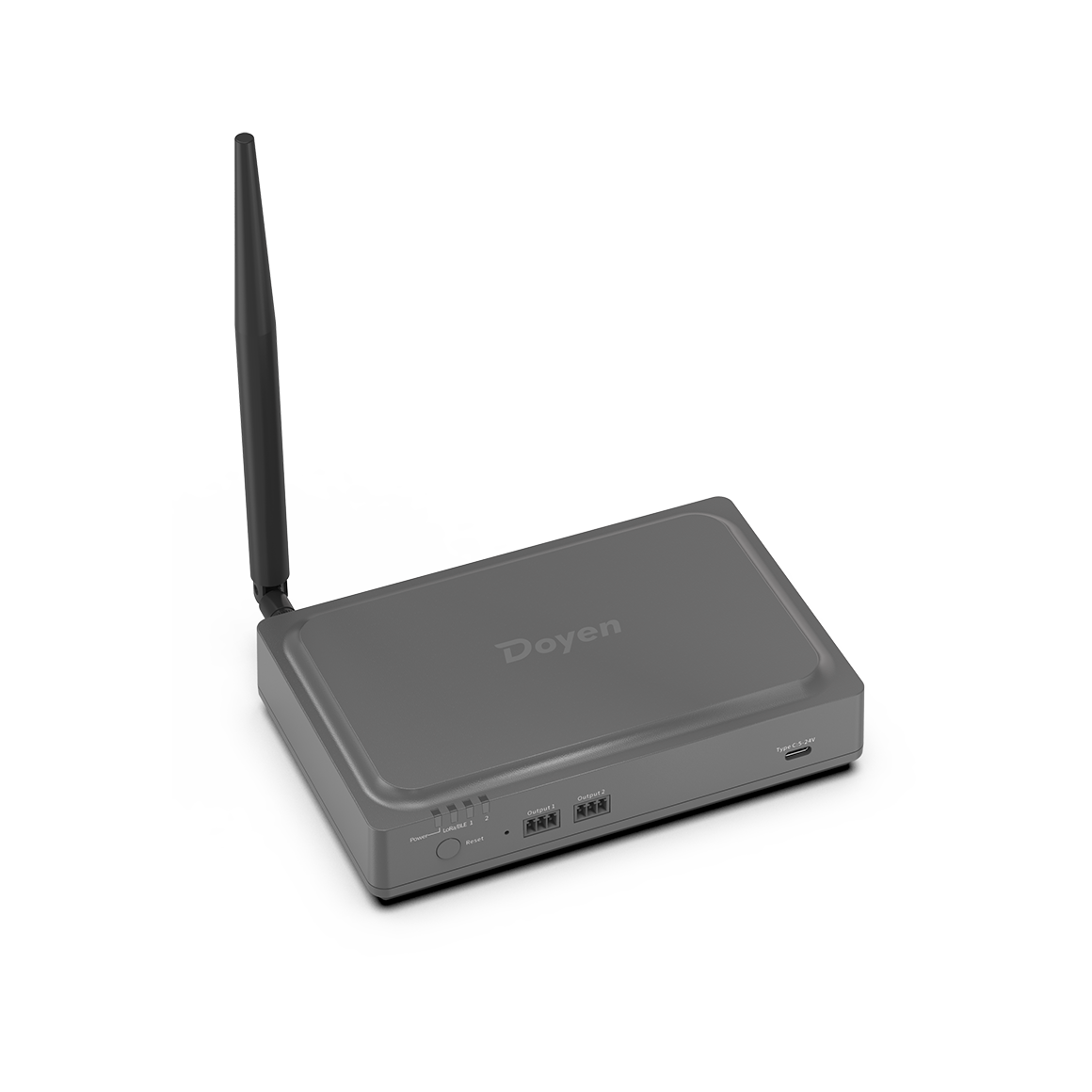

LoRaWAN and BLE Field Controller
The LoRaWAN® + BLE Field Controller connects backend systems with Andon Beacons and Strip Lights, enabling reliable task indication, status signaling, and precise location guidance across warehouse and industrial workflows.
Key Features
Multi-Strip Control for Precise Guidance
A single controller can manage multiple Strip Lights simultaneously, enabling precise shelf-level guidance, broader coverage, and scalable warehouse deployment.
Reliable LoRaWAN® & BLE Connectivity
Light control for stable, low-latency visual guidance across warehouse environments.
Flexible Mounting, Easy Installation
Multiple mounting options, including screw brackets, cable-tie brackets, and adhesive mounting, simplify installation across different surfaces, helping reduce deployment time and installation costs.
Specifications
| Wireless Transmission | |
| Protocol | LoRaWAN®, BLE |
| Frequency | LoRaWAN®: US915, EU868; BLE: 2.4GHz |
| Tx Power | LoRaWAN®: 19dBm; BLE: 10dBm (NA), 4dBm (EU) |
| Communication Range | LoRaWAN: 150m, BLE: 50m |
| Control Capacity | |
| Output Channels | 4 (Output port to first pixel: up to 15m) |
| Pixels per Output | 80 |
| Total Pixels | 320 |
| Interface & Button & Indicator | |
| Power Input | 1×DC input, 1×Type C input |
| Antenna Interface | 1×LoRa/BLE external antenna interface |
| Ethernet Interface | 1×RJ45 |
| Button | 1×Reset Button |
| LED Indicator | 1×Device Status, 1×LoRaWAN/BLE Communication, 4×Output Channel LEDs |
| Operating Conditions | |
| Temperature | Operating: -20°C - 70°C, Storage: -20°C - 85°C |
| Relative Humidity | 0 - 90% RH, Non-condensing |
| Physical Characteristics | |
| Dimension | 170mm × 118mm × 37mm |
| Weight | Approx. 370g |
| Installation | Wall, Desktop, 3M Adhesive, Bracket with Screws, or Bracket with Cable Tie |
