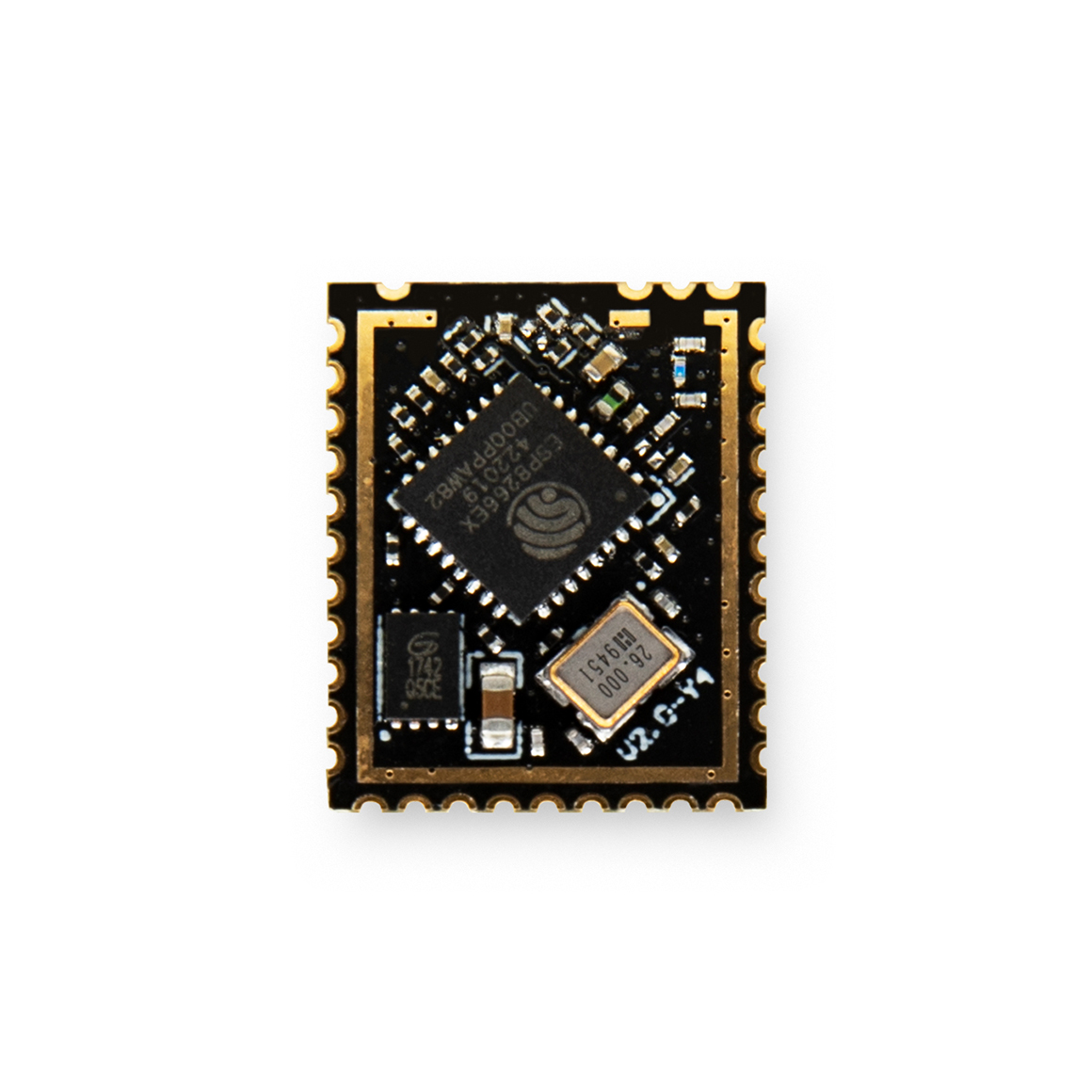

LWE22B500A
1. Support WiFi b/g/n mode.
2. High receiving sensitivity, maximum transmitting power to 18dBm.
3. High operating temperature to 105℃.
3. Small size, suitable for small size products.
2. High receiving sensitivity, maximum transmitting power to 18dBm.
3. High operating temperature to 105℃.
3. Small size, suitable for small size products.
Specifications
Name
Value
Module
LWE22B500A
IC Solution
Espressif ESP8266
Operating Voltage
2.7-3.6V
Transmitting Power
18dBm
Receiving Sensitivity
-89dBm
Name
Value
Support Interface
PWM / ADC / UART / I2C / GPIO
Operating Temperature
-40~105℃
Dimension
12mm*15mm
Tipical Applied Products
Power Driver, Plug, Gateway, Switch, etc.
