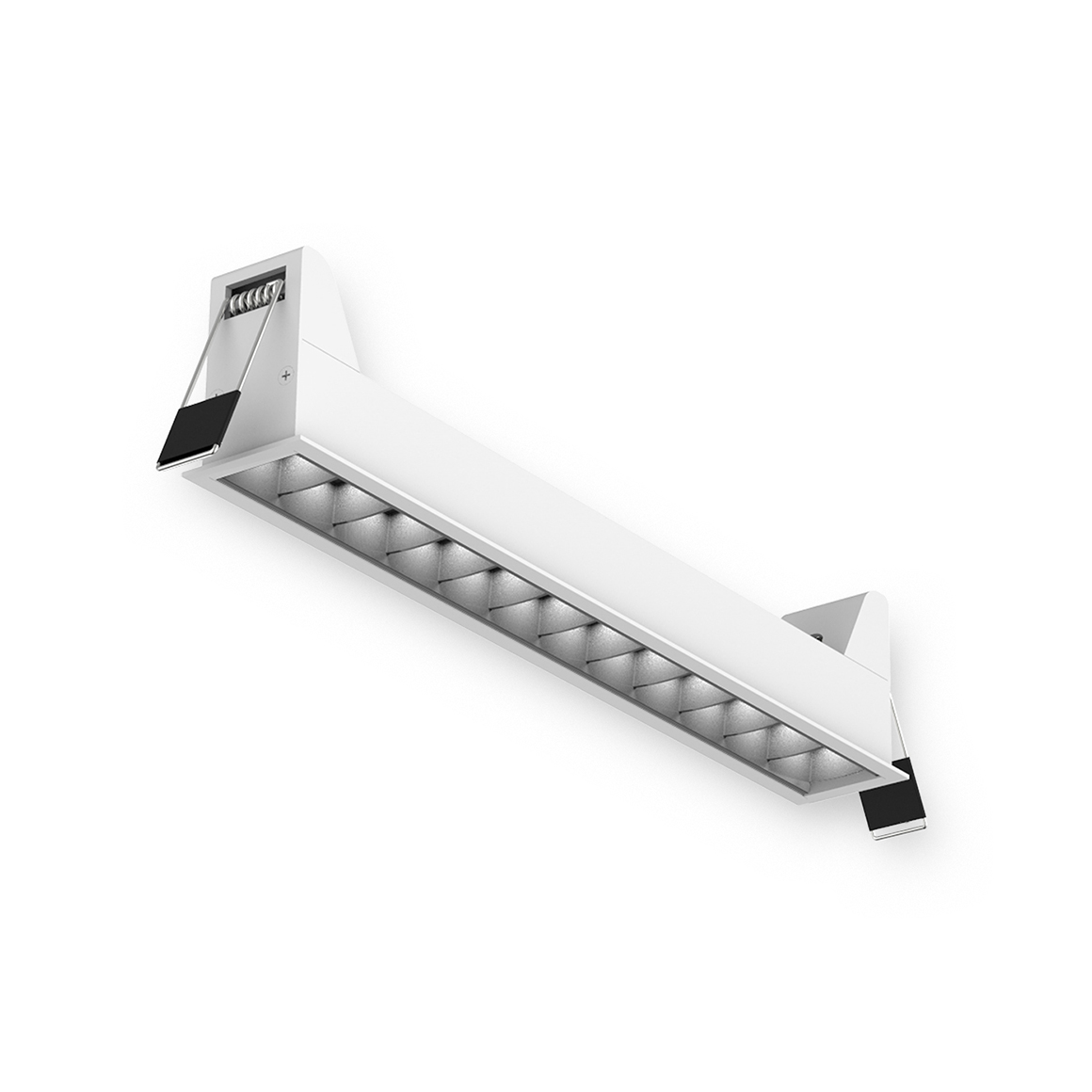

Linear_LAD1c_Recessed
New office lighting solution.LGR is exclusively designed for the architect and designer with imagination and personal style. This recessed Linear LED is easily installed from below using spring clips, which means it is simple to retro fit.
• Suitable for 1mm to 25mm mounting thicknesses.
• Moulded Florentina reflector controls glare
• Grills design lens optic guarantees glare-free illumination
• DALI Dimming available
• Lighting level glare limitation, UGR<19
• Moulded Florentina reflector controls glare
• Grills design lens optic guarantees glare-free illumination
• DALI Dimming available
• Lighting level glare limitation, UGR<19
Specifications
Name/Model
Input Voltage (V)
Wattage (W)
Lumens (lm)
Lifetime (H)
Dimensions (mm)
Certificate
WS-LGRC15BL1
220-240
15
1350
50000
587*42*63
CE, RoHS
WS-LGRC10AL1
220-240
10
900
50000
300*42*63
CE, RoHS
