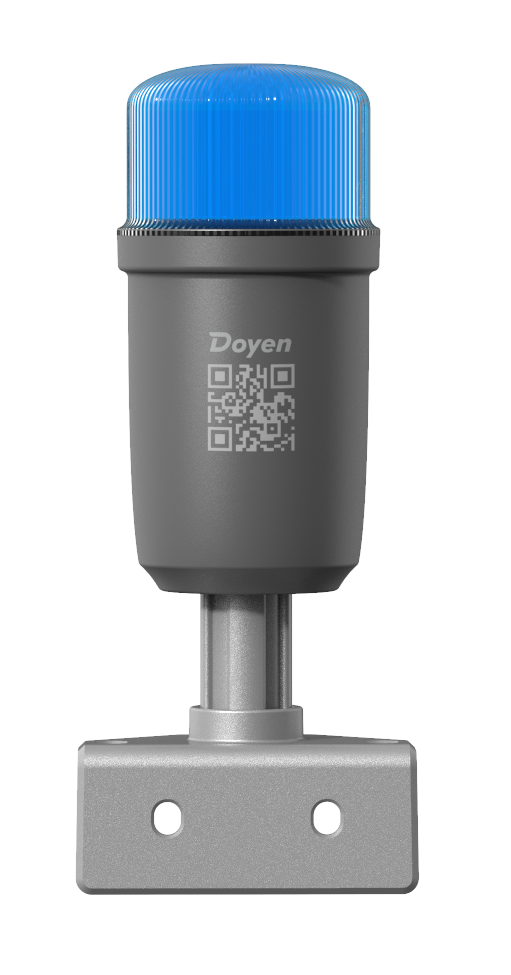

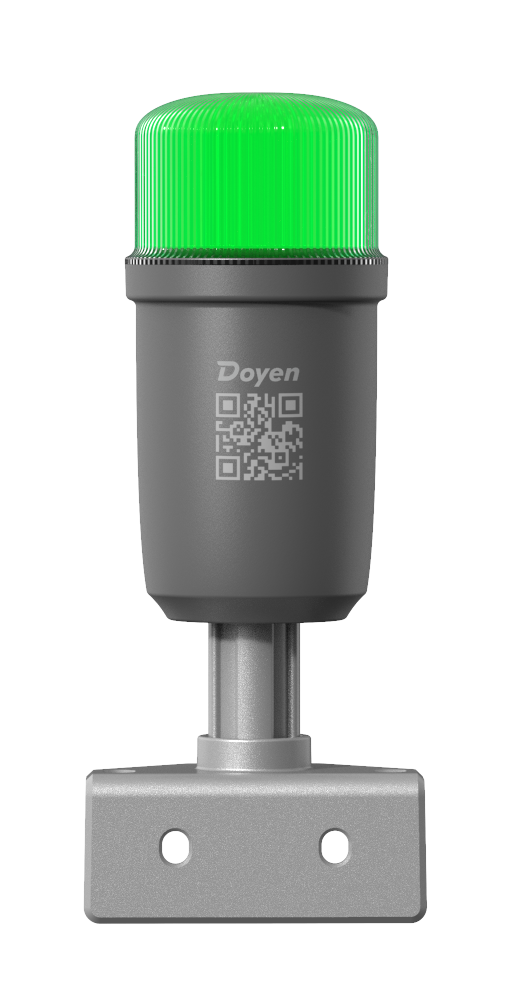

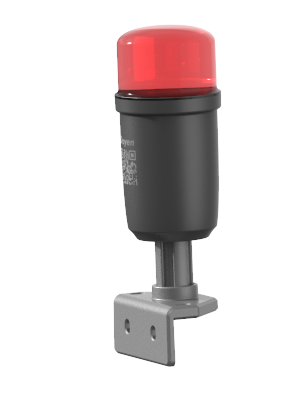

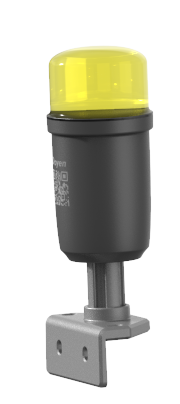

Andon Beacon
The Andon Beacon provides high-visibility RGB indication for logistics transfer carts. With multi-color status display and rapid flashing alerts, it helps operators quickly identify the correct cart and improve handling efficiency.
Key Features
Multi-Color Visual Guidance
The high-brightness RGB indicator supports configurable multi-colors and lighting modes to distinguish tasks and statuses, enabling faster cart identification and reducing operational errors.
Reliable LoRaWAN & BLE Connectivity
Supports both LoRaWAN® and BLE for flexible wireless deployment across different warehouse environments. Long-range coverage and low-latency communication enable responsive task indication and reliable day-to-day operation.
Quick-Swap, Rechargeable Power
The replaceable rechargeable battery allows fast battery swapping without taking the beacon out of service for long periods. This helps minimize downtime and simplifies maintenance in high-frequency logistics operations.
Flexible Mounting, Easy Adaptation
Supports various mounting methods, allowing the Andon Beacon to be installed on different cart structures under various conditions. These flexible mounting options facilitate simpler deployment and enable easier expansion across diverse logistics scenarios.
Specifications
| Wireless Transmission | |
| Protocol | LoRaWAN®, BLE |
| Frequency | LoRaWAN®: US915, EU868; BLE: 2.4GHz |
| Communication Range | LoRaWAN: 150m; BLE: 20m |
| LED | |
| LED Color Type | Red, Blue, Green (You can use RGB to create other new colors.) |
| LED Illuminance（1m） | Red:1lx, Green: 0.63lx, Blue: 3.89lx, White: 5.48lx |
| Battery | |
| Battery Type | Rechargeable Ternary Lithium-ion Battery |
| Battery Capacity (25℃) | 35.77Wh, 71.54Wh, 99Wh (Optional) |
| Voltage | Operating: DC 2.8-4.2V, Charging: DC 4.75-5.3V |
| Current | Operating: 3.8×10⁻⁴-0.2A, Charging: 0.9-3A |
| Operating Conditions | |
| Temperature | Operating: -20℃ - 50℃, Storage: -20℃ - 70℃ |
| Humidity | Operating: 10% - 90% RH , Non-condensing, Storage: 40% - 80% RH, Non-condensing |
| Physical Characteristics | |
| IP Protection | IP20 |
| Dimension | 80mm × 80mm × 467mm |
| Weight | Approx. 1020g |
| Installation | Screw Mounting, U-bolt, Cable Tie |
