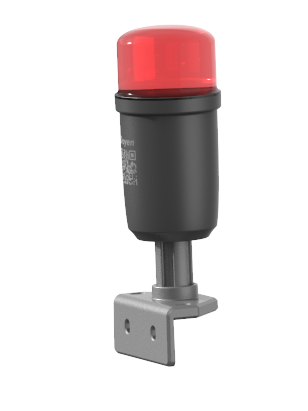

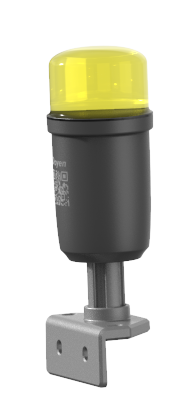

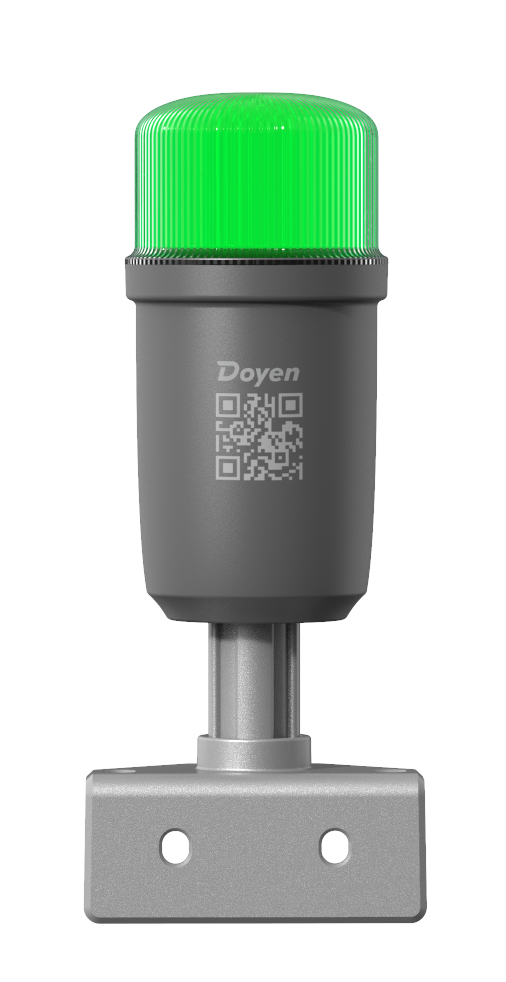

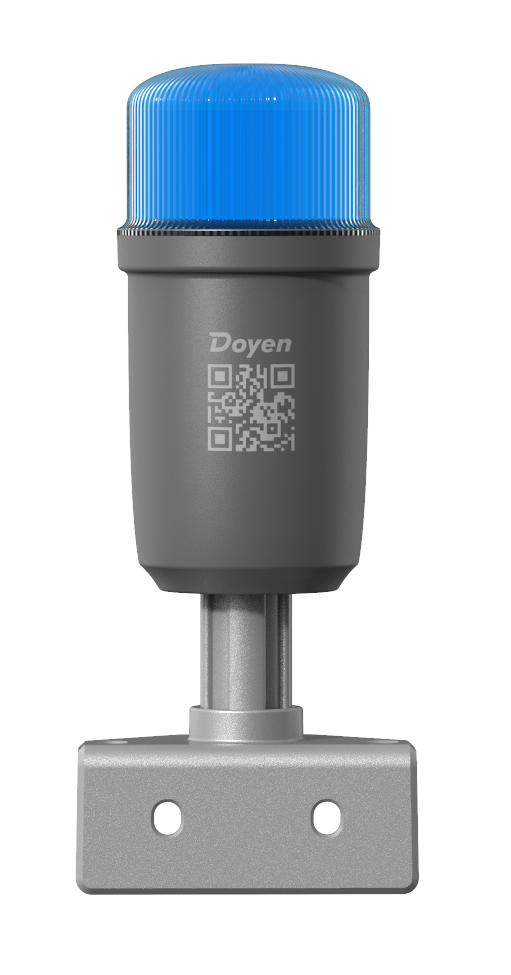

Multi-control Andon Beacon
The Multi-Control Andon Beacon combines RGB indication with multi-strip light control for precise cart, shelf, and different-condition guidance, helping reduce search time and improve picking and handling efficiency.
Key Features
Multi-Color Visual Guidance
The high-brightness RGB indicator supports configurable multi-colors and lighting modes to distinguish tasks and statuses, enabling faster cart identification and reducing operational errors.
Control More Strip Lights, Guide More Locations
The Multi-Control Andon Beacon combines its own high-visibility indicator with multi-Strip Light control, enabling clear cart-level indication and more precise shelf- or location-level guidance from a single device.
Reliable LoRaWAN® & BLE Connectivity
Supports LoRaWAN® and BLE for flexible wireless connectivity, with wired Strip Light control for stable, low-latency visual indication across warehouse applications.
Quick-Swap, Rechargeable Power
The replaceable rechargeable battery allows fast battery swapping without taking the beacon out of service for long periods. This helps minimize downtime and simplifies maintenance in high-frequency logistics operations.
Specifications
| Wireless Transmission | |
| Protocol | LoRaWAN®, BLE |
| Frequency | LoRaWAN®: US915, EU868, BLE: 2.4GHz |
| Communication Range | LoRaWAN: 150m, BLE: 20m |
| Control Capacity | |
| Output Channels | 4 (Output port to first pixel: up to 10m) |
| Pixels per Output | 40 |
| Total Pixels | 160 |
| LED | |
| LED Color Type | Red, Blue, Green (You can use RGB to create other new colors.) |
| LED Luminance | Red: 32.126 cd/m², Green: 105.52 cd/m², Blue: 12.655 cd/m², White: 150.15 cd/m² |
| Battery | |
| Battery Type | Rechargeable Ternary Lithium-ion Battery |
| Battery Capacity (25℃) | 35.77Wh, 71.54Wh, 99Wh (Optional) |
| Voltage | Operating: DC 5.9-8.4V, Charging: DC 4-24V |
| Current | Operating: 4×10⁻³-3A, Charging: 2-5A |
| Battery Life (25℃) | 70% after 1000cycles |
| Operating Conditions | |
| Temperature | Operating: -20℃ - 60℃, Storage: -20℃ - 70℃ |
| Relative Humidity | 10% - 90% RH, Non-condensing |
| Physical Characteristics | |
| Protection Rating | IP54, IK08 |
| Dimension | 133mm × 100mm × 289.5mm |
| Weight | Approx. 1050g |
| Installation | Screw Mounting, U-bolt, Cable Tie |
More
Downloads
-
Multi-Control-Andon-Beacon-Datasheet （0.13 MB） -
Multi-Control-Andon-Beacon-User-Manual （0.40 MB）
