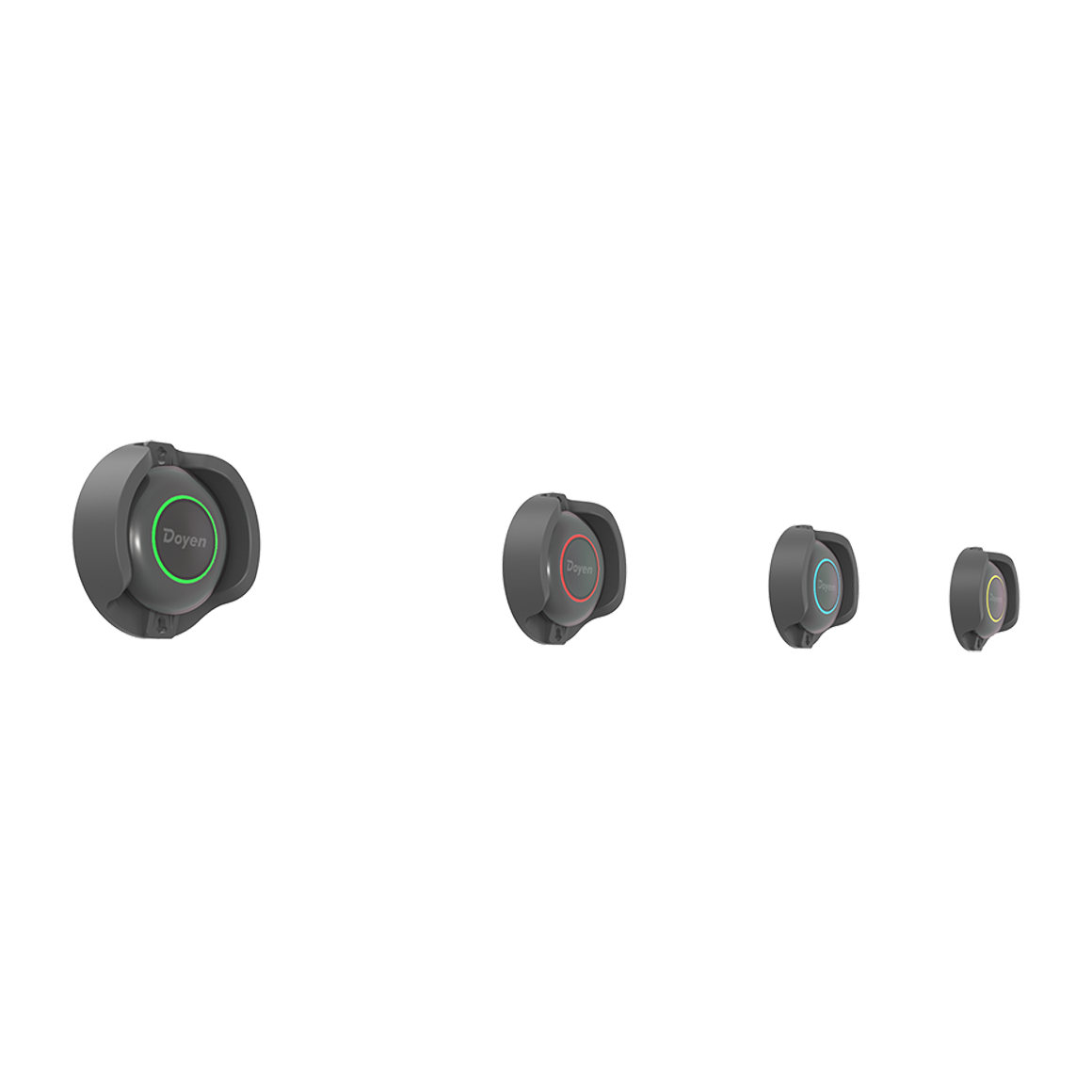

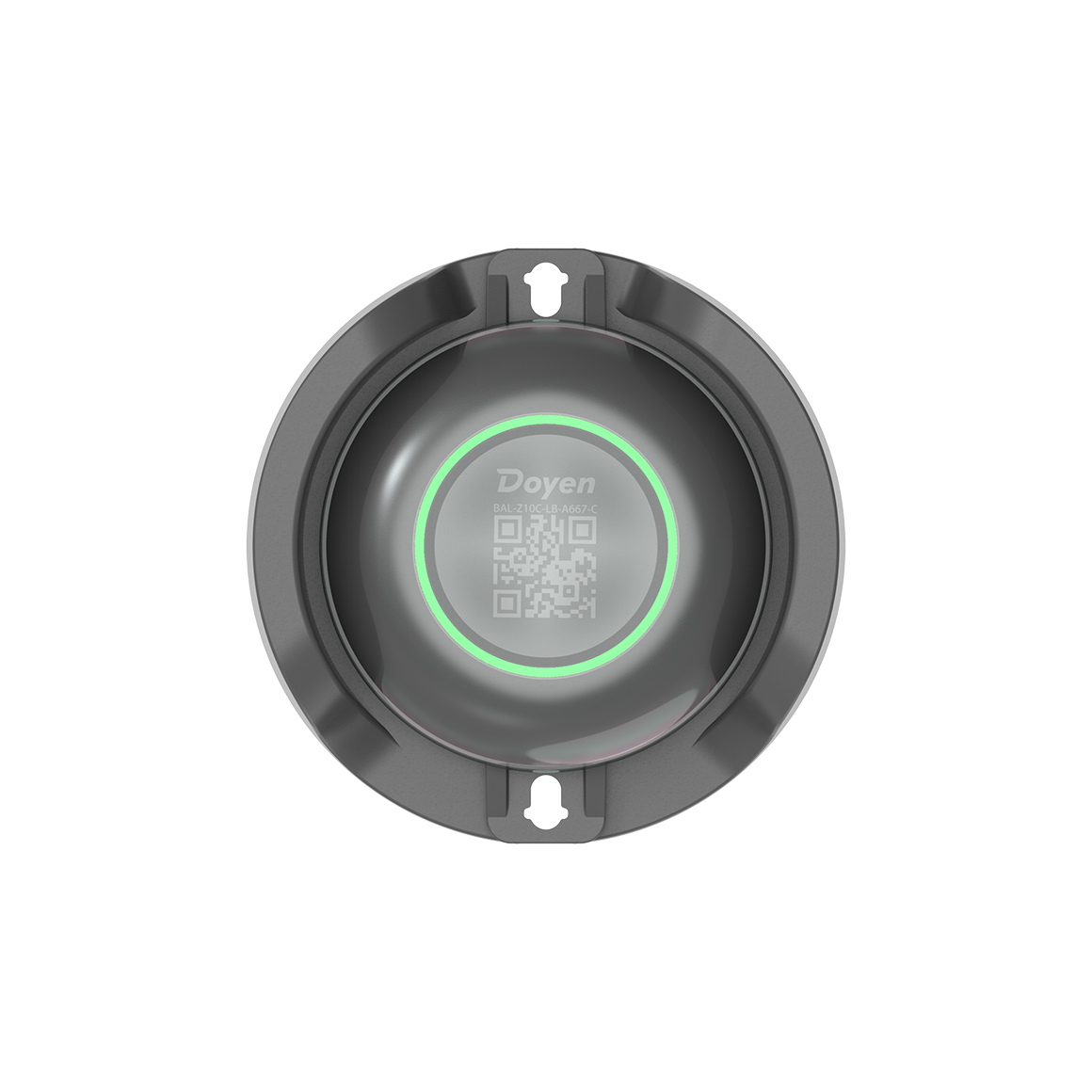

Smart Trigger Button
The Doyen Smart Trigger Button enables one-click exception reporting and task confirmation across warehouse, logistics, and manufacturing environments, helping teams respond faster and improve workflow visibility.
Key Features
One-Click Trigger, Faster Workflow
A single press can confirm task completion and trigger the next workflow, while configurable press actions can represent different events for faster, simpler operation.
Different Visual Feedback, Different Business
Configurable colors and lighting modes provide instant status feedback, helping teams quickly identify completed tasks, exceptions, and priority events for faster response.
Flexible LoRaWAN® & BLE Connectivity
Supports LoRaWAN® and BLE for flexible integration with existing infrastructure, enabling easy deployment across different coverage and network requirements.
Reliable & Low-Maintenance Deployment
Flexible mounting options and up to 5 years of battery life enable easy installation across diverse sites while reducing maintenance and supporting large-scale deployment.
Specifications
| Wireless Transmission | |
| Protocol | LoRaWAN® and BLE protocol |
| Frequency | LoRaWAN®: US915, EU868 BLE: 2.4GHz (2400~2480 MHz) |
| Communication Range | LoRaWAN®: 150m, BLE: 50m |
| Button & Indicator | |
| Button | 1× Main Button, 1 ×Reset Button (Internal) |
| Indicator Light | 1× Indicator Light |
| Power Supply | |
| Power Supply | 2 × CR2032 3V Lithium Coin Batteries |
| Battery Life | 5 Years (factory default configuration), may vary by use case and configuration |
| Operating Conditions | |
| Temperature | Operating: -10℃ ~50℃; Storage: -20℃ ~60℃ |
| Relative Humidity | 0~90% RH (Non-condensing) |
| Protection Rating | IP56, IK08 without button |
| Physical Characteristics | |
| Weight | Approx. 52g |
| Weight | Approx. 81g (With Impact Housing) |
| Dimension | 83.5mm X 62mm X 18.2mm Φ85mm X 25mm (With Impact Housing) |
| Installation | Screw Mounting, Cable Tie Mounting, 3M Adhesive or Magnetic Mounting |
More
Downloads
-
Smart-Trigger-Button-Datasheet （0.24 MB）
